Basic Info
Model No.: HHY-Crusher
Type: Linear
Function: High Frequency Vibrating Screen
Transmission Structure: Vibrating Screen
Usage: Mine Shaker
Works: Rotary Vane Shaker
Object: Ore
Shaft Number: Other
Running Track: Other
Supporting Device: Other
Warranty: 3 Years
Customized: Customized
Condition: New
Additional Info
Packaging: pallet or as require
Productivity: 1X20' container/10days
Brand: HHY
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 1X20' container/10days
Certificate: ISO9001:2008
Port: TIANJIN,Or As Require
Product Description
Vibrating Screen Mesh Cloth
Vibrating screen cloth is popular in Europe, it`s also named vibration screen cloth, vibrator screen cloth, or woven vibrating cloth. actually the 65Mn vibrating screen mesh, it`s always woven with high tensile steel wire, manganese steel wire, and stainless steel wire. Customers just based on your own demands to require material, wire thickness and aperture size, even the panel type and hook type.
Vibration Screen Cloth specifications:
Material: Carbon steel(iron wire, high carbon steel wire), manganese steel(30Mn, 65Mn), stainless steel(304, 316, 304L, 316L).
Wire diameter: 1.2mm~22mm
Panel type: flat panel, Panel with hook, Panel with plate hook, in roll.
There are three type of stone crusher screen mesh according to the hole sizes and wire diameter compare.
light type, middle type and heavy type.
|
Hole size (mm) |
Light Types |
Middle Types |
Heavy types |
|||
|
Wire diameter (mm) |
Opening Rate % |
Wire diameter (mm) |
Opening Rate % |
Wire diameter (mm) |
Opening Rate % |
|
|
125.0 |
- |
- |
10.00 |
86 |
12.5 |
83 |
|
112.0 |
- |
- |
10.00 |
84 |
12.5 |
81 |
|
100.0 |
- |
- |
10.00 |
83 |
12.5 |
79 |
|
90.0 |
- |
- |
10.00 |
81 |
12.5 |
77 |
|
80.0 |
- |
- |
10.00 |
79 |
12.5 |
75 |
|
71.0 |
- |
- |
10.00 |
77 |
12.5 |
72 |
|
63.0 |
8.00 |
79 |
10.00 |
74 |
12.5 |
70 |
|
56.0 |
8.00 |
77 |
10.00 |
72 |
12.5 |
67 |
|
50.0 |
6.50 |
79 |
8.00 |
74 |
10.00 |
69 |
|
45.0 |
6.50 |
77 |
8.00 |
72 |
10.00 |
67 |
|
40.0 |
6.50 |
75 |
8.00 |
69 |
10.00 |
64 |
|
36.0 |
5.00 |
77 |
6.50 |
72 |
8.00 |
67 |
|
32.0 |
5.00 |
75 |
6.50 |
70 |
8.00 |
64 |
|
28.0 |
5.00 |
72 |
6.50 |
67 |
8.00 |
60 |
|
25.0 |
5.00 |
69 |
6.50 |
64 |
8.00 |
57 |
|
22.0 |
4.00 |
72 |
5.00 |
66 |
6.30 |
60 |
|
20.0 |
4.00 |
69 |
5.00 |
64 |
6.30 |
58 |
|
18.0 |
4.00 |
67 |
5.00 |
61 |
6.30 |
55 |
|
16.0 |
3.00 |
70 |
4.00 |
64 |
5.00 |
58 |
|
14.0 |
3.00 |
67 |
4.00 |
60 |
5.00 |
54 |
|
13.0 |
3.00 |
65 |
4.00 |
58 |
5.00 |
52 |
|
11.0 |
2.50 |
67 |
3.00 |
61 |
4.00 |
54 |
|
10.0 |
2.50 |
64 |
3.00 |
58 |
4.00 |
51 |
|
9.0 |
2.50 |
61 |
3.00 |
55 |
4.00 |
48 |
|
8.0 |
2.00 |
64 |
2.50 |
58 |
3.00 |
51 |
|
7.0 |
2.00 |
61 |
2.50 |
55 |
3.00 |
48 |
|
6.0 |
2.00 |
56 |
2.50 |
50 |
3.00 |
43 |
|
5.0 |
2.00 |
54 |
2.50 |
44 |
3.00 |
38 |
|
4.5 |
1.80 |
51 |
2.20 |
45 |
2.50 |
41 |
|
4.0 |
1.60 |
51 |
2.00 |
44 |
2.20 |
41 |
|
3.0 |
1.20 |
50 |
1.50 |
40 |
2.00 |
38 |
|
2.0 |
0.80 |
50 |
1.20 |
41 |
1.50 |
40 |
|
PS: Other hole size and wire diameter to match, clients can require.
|
||||||

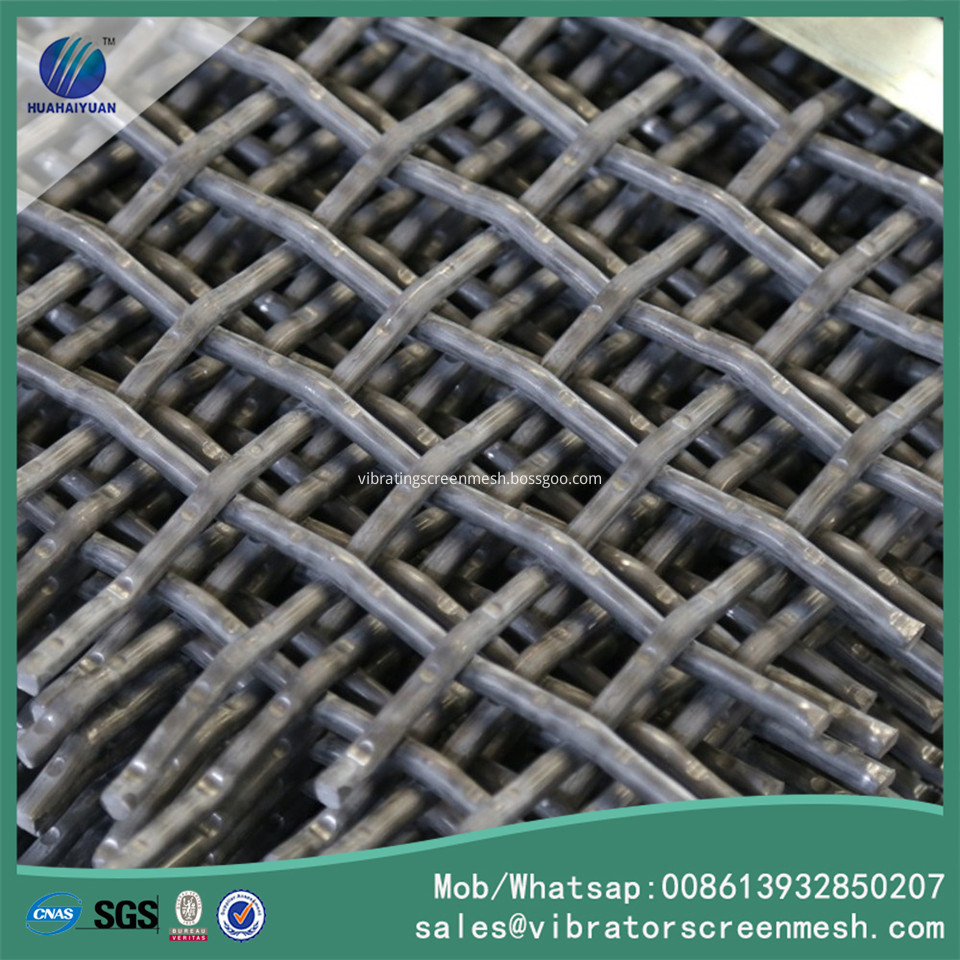

Woven Vibrating Cloth Flat panel:

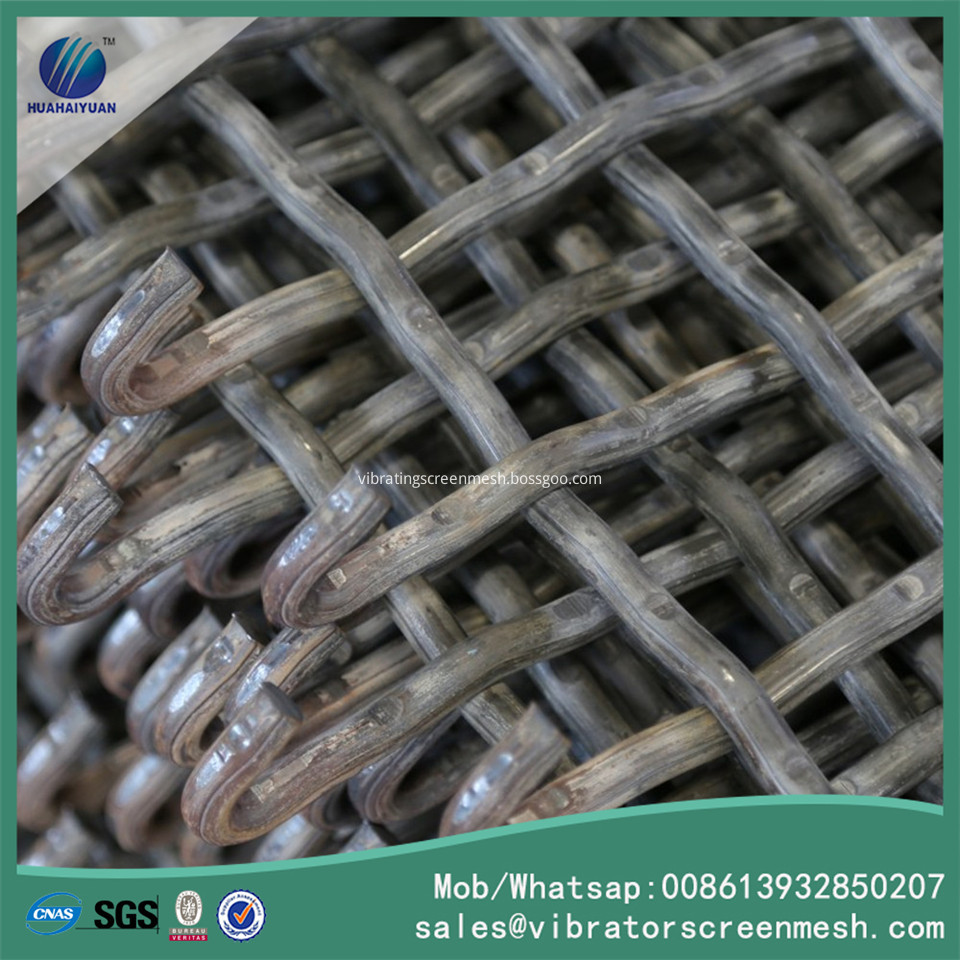

Vibrator Screen Cloth Panel with hook:

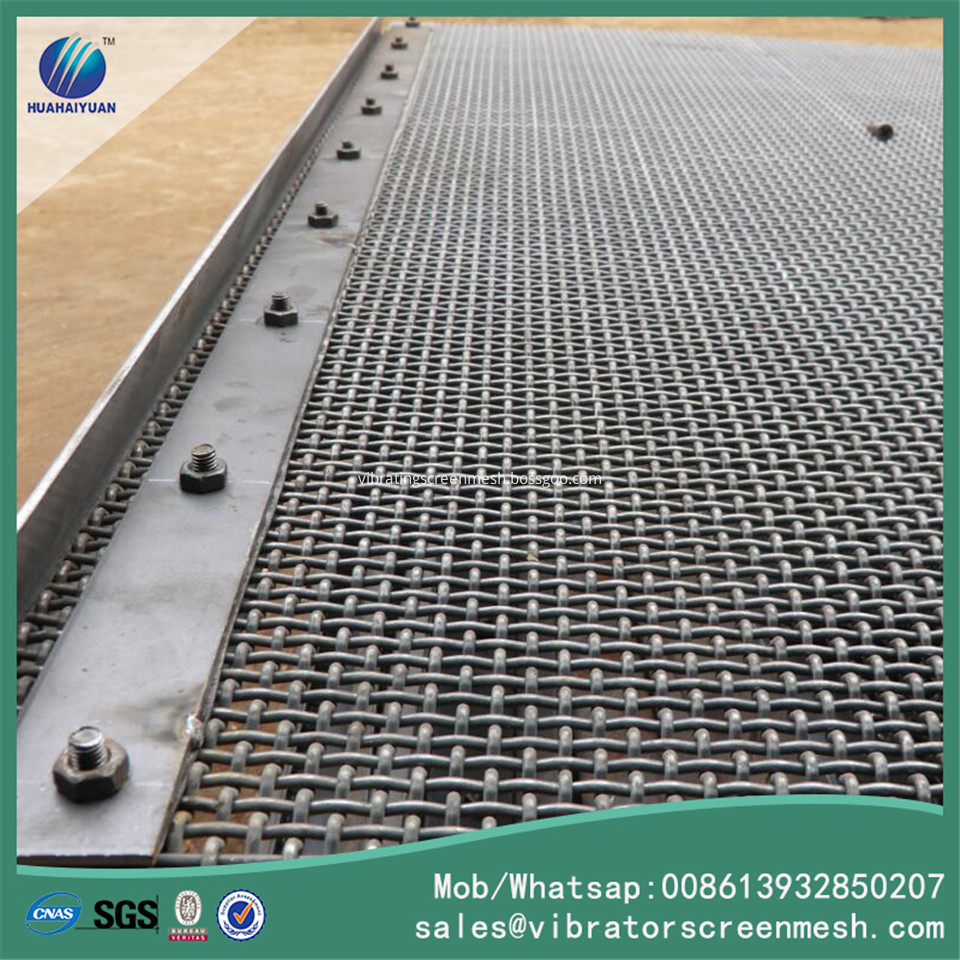

Vibration Screen Cloth Panel with plate hook:

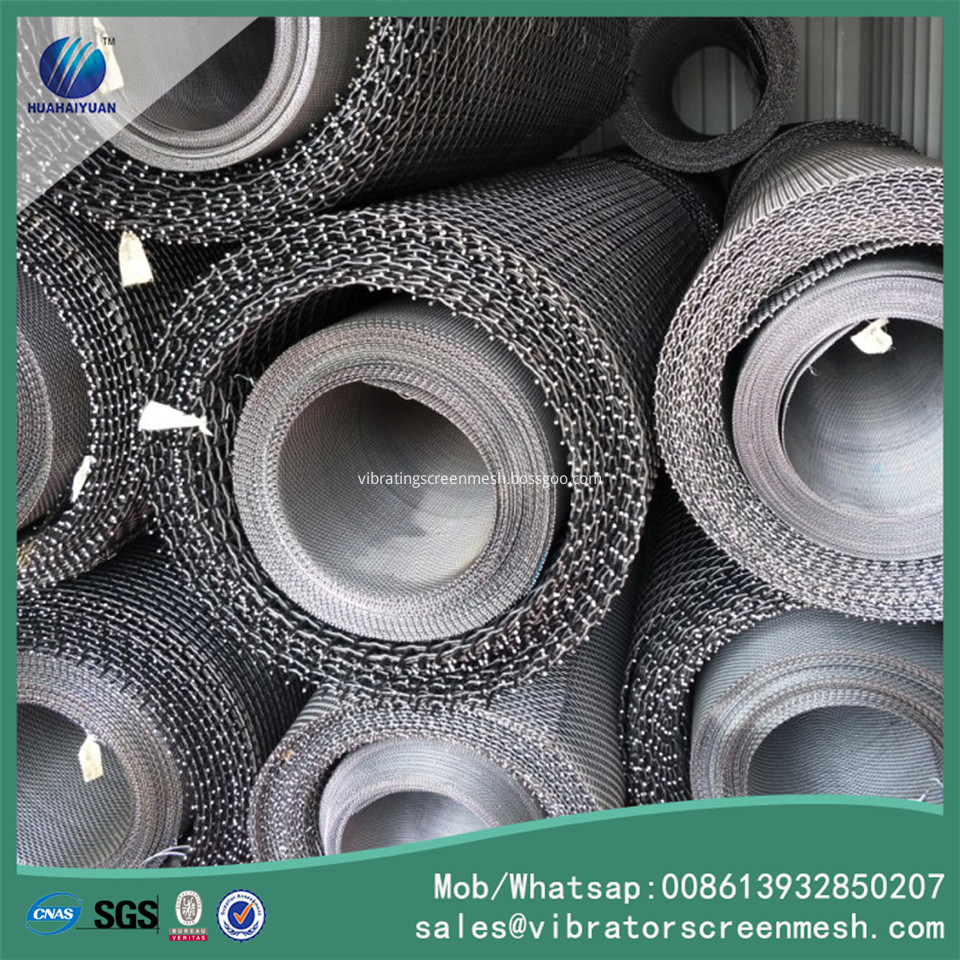

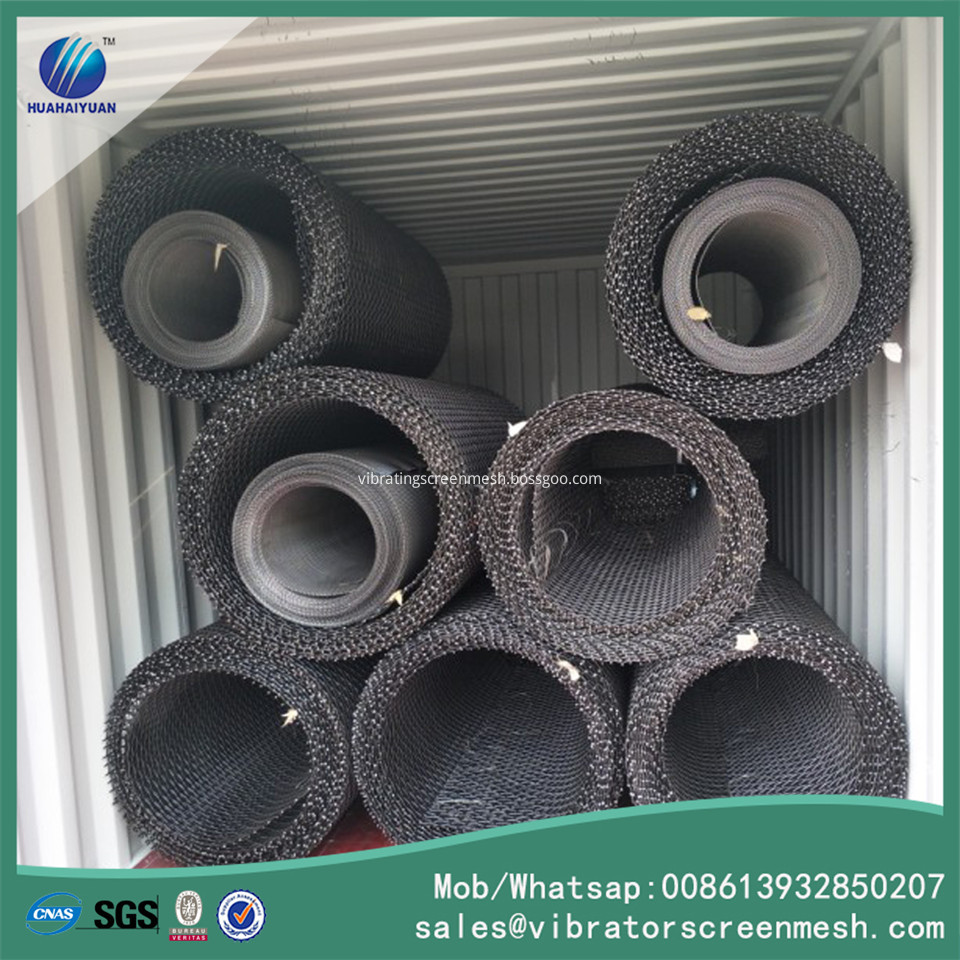

Vibrating Screen Mesh Cloth rolls:
