Mining screen Sieve Mesh

Basic Info

Model No.: HHY-mine

Type: Other

Function: High Frequency Vibrating Screen

Transmission Structure: Vibrating Screen

Usage: Mine Shaker, Experiments Shaker

Works: Other

Object: Ore

Shaft Number: Other

Running Track: Other

Supporting Device: Other

Warranty: 3 Years

Customized: Customized

Condition: New

Additional Info

Packaging: pallet or as require

Productivity: 1X20' container/10days

Brand: HHY

Transportation: Ocean,Land,Air

Place of Origin: CHINA

Supply Ability: 1X20' container/10days

Certificate: ISO9001:2008

HS Code: 73144900

Port: TIANJIN

Product Description

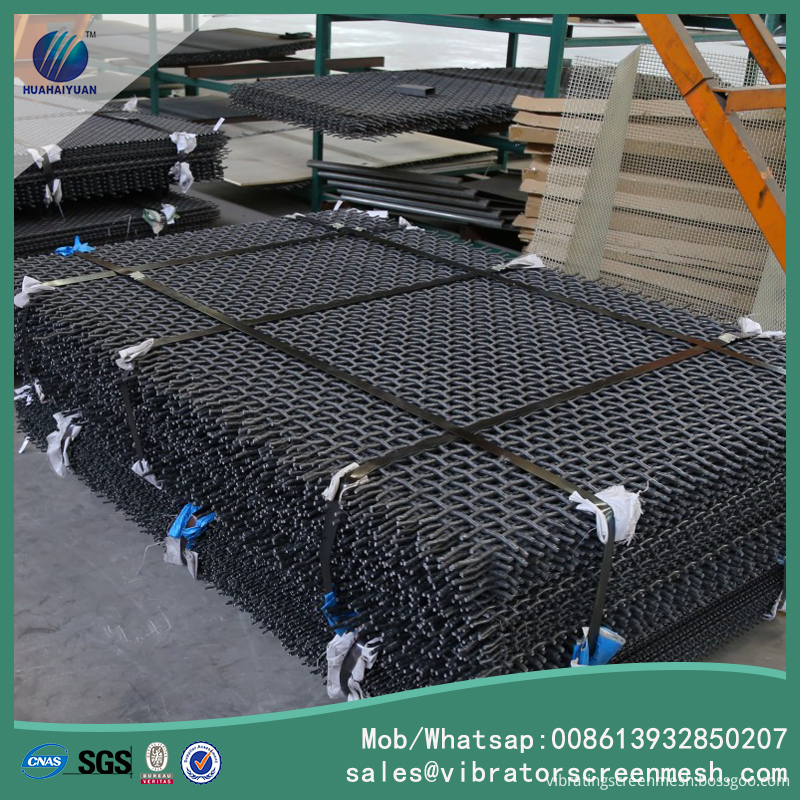

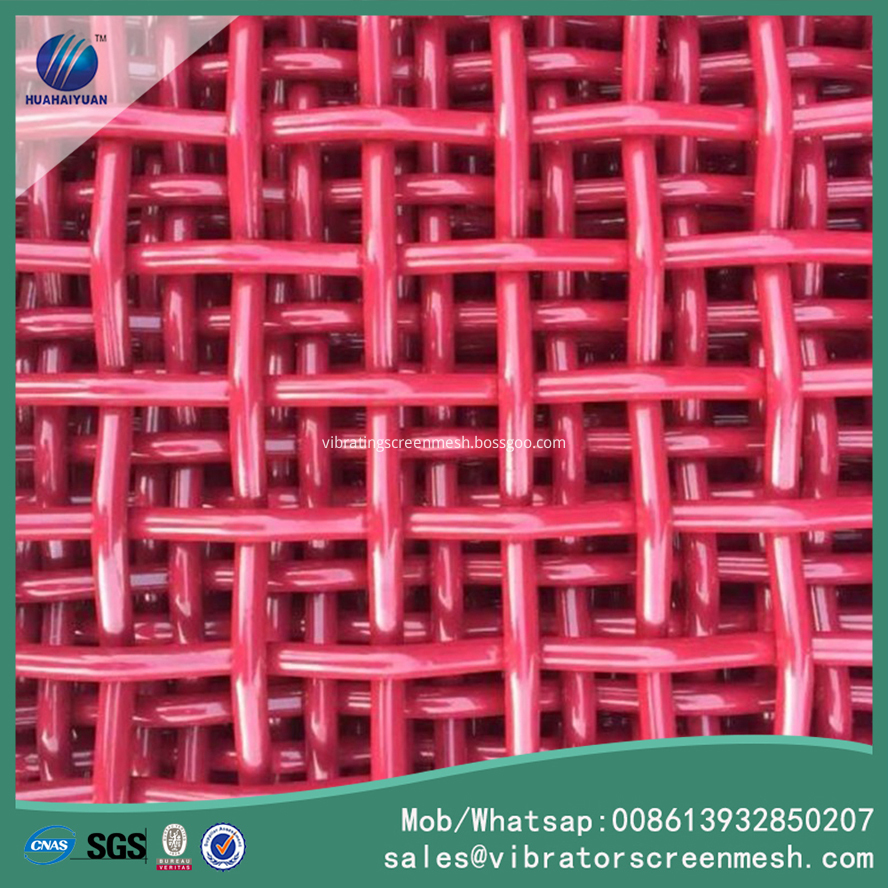

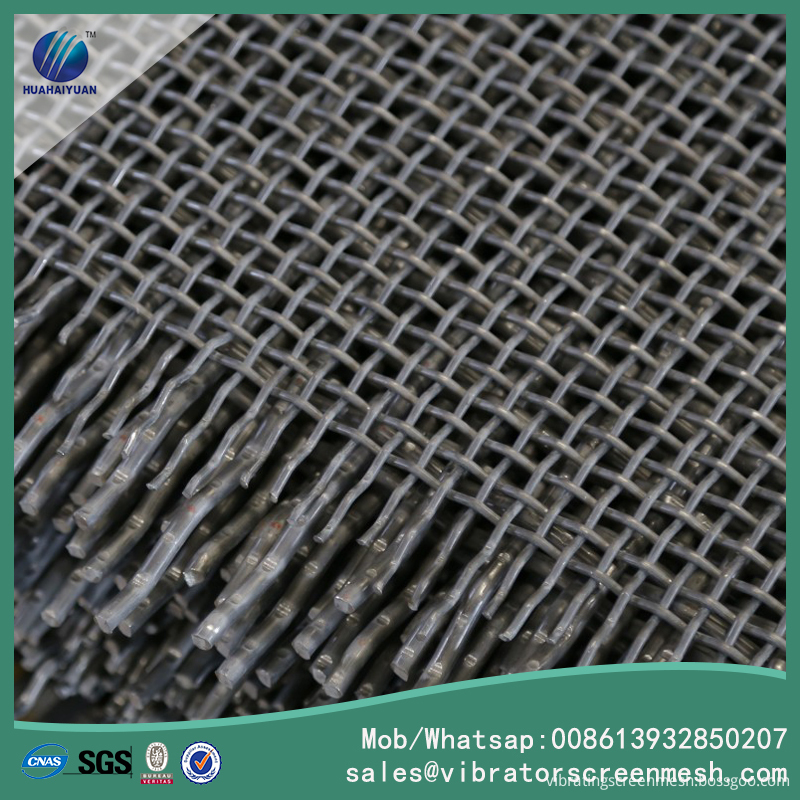

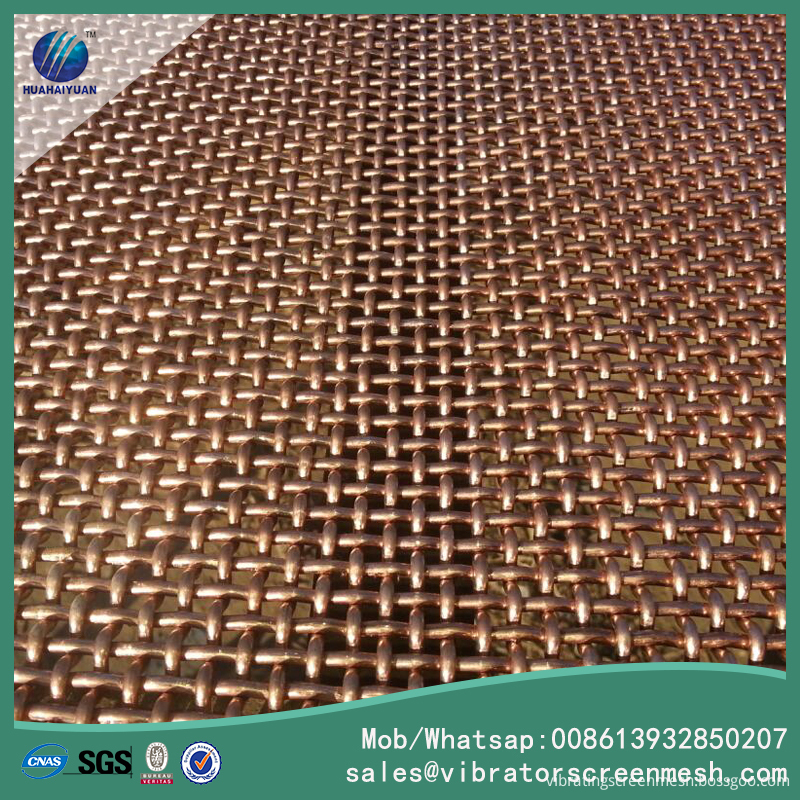

Mining screen Sieve Mesh

Mining screen sieve mesh is a sieve screen mesh that woven for filtering sand, gravel, soil, mine or stone etc. Mining sieve screen mesh is also called high carbon steel screen mesh, high tensile sieve screen mesh etc. high tensile sieve screen mesh is woven by some pre-crimped wearble steel wires, with square hole, rectangular hole or slot holes. People use mining sieve screen mesh to benificiate stone, sand, gravel, aggregate etc, some in corrosive environment, so all sizes and materials can be customized with fast delivery.

Mining screen sieve mesh weaving: crimps, double crimp, lock crimp, corrugated crimp.

Material: high tensile steel wire, manganese steel wire, stainless steel wire.

Friendly notes: if your environment is corrosion, we suggest you to use stainless steel and thick wire.

Mining screen sieve mesh type: light type, middle type, and heavy type.

Mesh size: 3mm, 5mm, 12mm, 19mm, 25mm, ...32mm, 40mm etc.

All sizes can be customized.

We can do panels type:

Flat panel: 1500x2000mm, 1750x4500mm, 1800x3000mm etc, all sizes can be customzied.

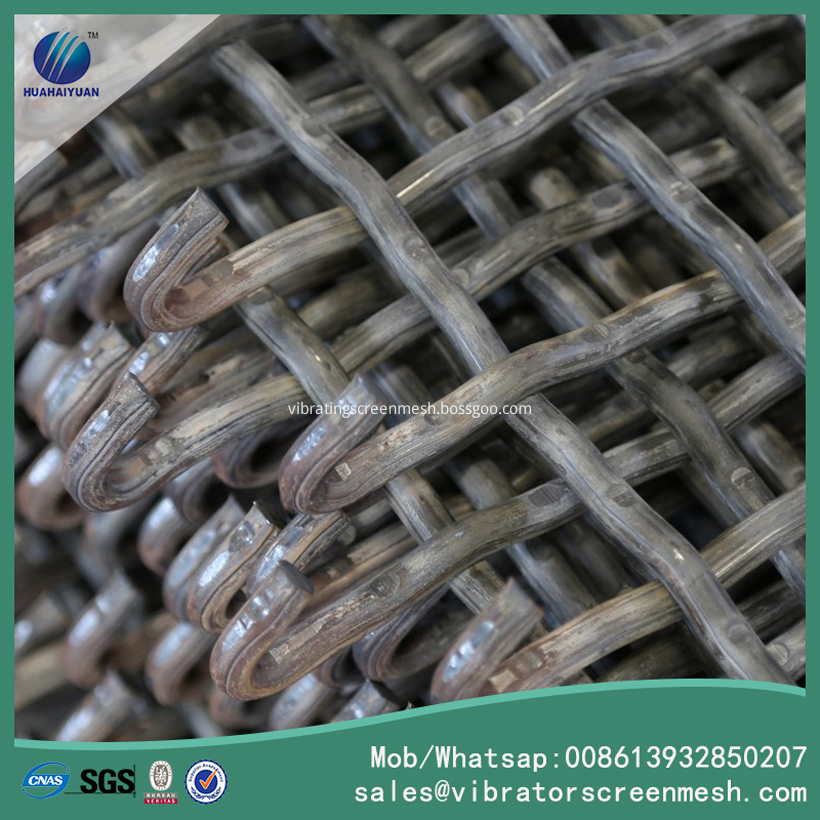

Hook panel: can be customized.

Plate hook type: 1760*2600mm, 1500*3000mm etc, sizes can be customzied.

Mining screen sieve mesh usage: used in screen deck, quarrying scren, mining screen, screen wire for stone crusher ,classifying trammel, vibrating screen, road construction equipment, the asphaltum mix round equipment and the mine vibrating screens, chemical industry, pharmacy, machinery, protection, construction.

Mining screen sieve mesh characteristics:

Flexible, wearable, anti-corrosion, longer life, high tensile, high work efficiency.

There are three types vibrating screen mesh. Light types, middle type, and heavy types, these hole sizes for different wire diameter, according to the users` fact condition, choose different.

As following only showing some hole size and wire diameter compare. All the hole size and wire diameter can produce according to clients` requirements.
