highway noise barrier wall metal sound barrier

Basic Info

Model No.: HHY068

Position: Green Barrier

Material: Steel

Function: Beautiful

Upright Post: 100*100

Post Fixation: Polymer Base

Degree of Distortion: Rigid Barrier

Surface Treatment: PVC Coated

Additional Info

Packaging: in package

Productivity: 100000

Brand: huahaiyuan

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 1000000

Certificate: ISO9001:2008

HS Code: 73144900

Port: Xingang Tianjin

Product Description

highway noise barrier wall metal sound barrier pvc coated sound barrier

Sound absorbing panel are the main noise reduction component, it is ixed by high stength spring clip on the groove of the beam. Considering the environment the highway, railway road and subway, it is designed for open-air corrosion, easy transportation and installation, and long life.

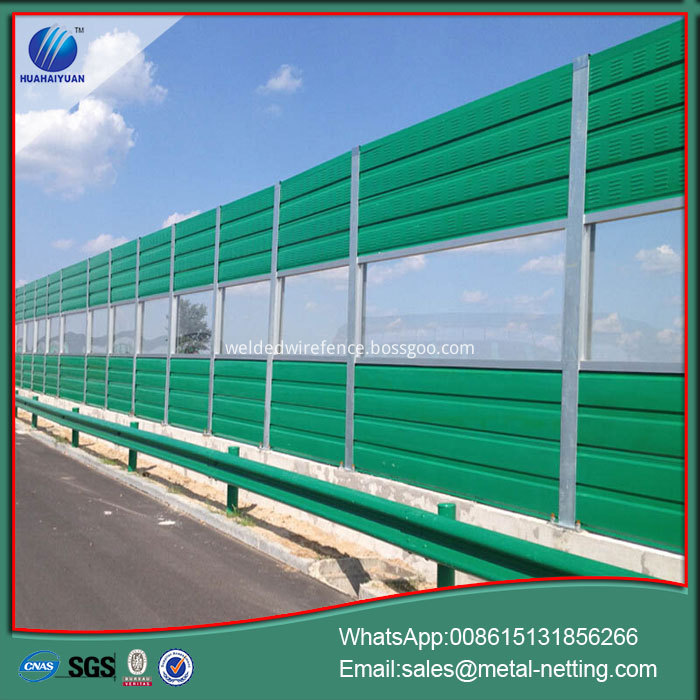

Sound barriers are made of the steel H beam and sound absorbing panels. Steel H beam is the main force components, it si fixed by bolts or welding on the road barrier wall or the side of the embeded steel plate.

Highway Noise Barriers Height of the sound barriers is also bettween 1m-5m. Covering the effective area, the noise reduction is 10-15dB(A)(125HZ-40000HZ,1/3 octave),up to 20dB(A).Generally the sound barriers height and distance is more bigger, the reduction effect is more better.

1. Good perfomance of acoustic insulation: the average acoustic insulation amound should not less than 35dB;

2. High sound absorption coeficient: the average sound absorption coeficient amount should not be less than 0.84.

The metal Sound Barrier Wall accoding to diffirent hole shape,there also are two types:

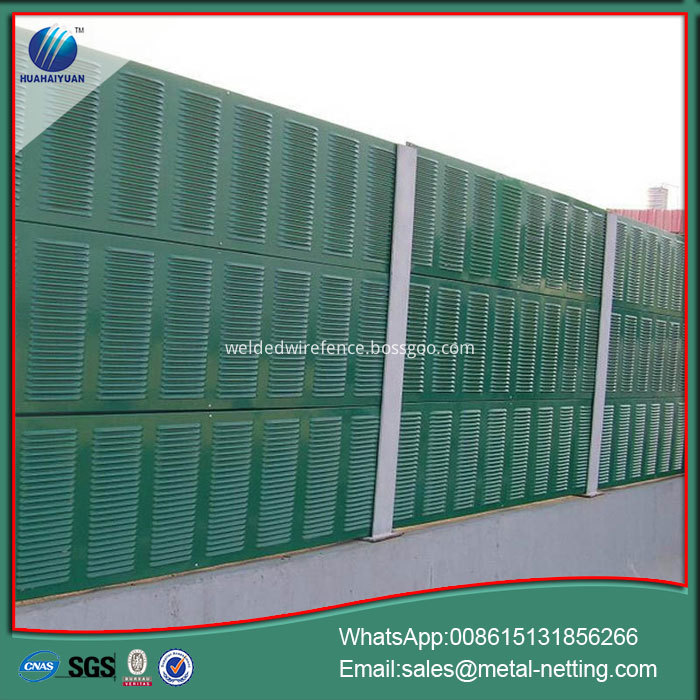

1. Window-blinds Types

2. Round shape types

Metal Sound Barrier Wall Specifications:

1. Sound barrier wall panel thickness: 80mm,100mm,120mm;

2. Sound barrier Wall panel length & height: 2000mmx500mm,2500mmx500mm, 3000mmx500mm, or according to clients' requirement;

3. Sound Barrier Wall Post: H 100, H125, H150, H175, H200;

Sound Barrier Wall Technical features: 1. Impact strength: 850J/m, the impact strength of solid PC sheets is 250 times that of glass, 20-30 times of PMMA sheet

Use: highway, near to factory, railway, noise barrier can protect them have a good quite environment.
