|Payment Type:||L/C,T/T,Western Union|
|Min. Order:||1 Piece/Pieces|
|Delivery Time:||15 Days|
Model No.: HHY-SS
Hole Shape: Square
Application: Filter, Construction Wire Mesh, Protecting Mesh, Decorative Mesh, Screen, Fence Mesh, Barbecue Wire Mesh, Window Curtain, Cages
Type: Stainless Steel Crimped Wire Mesh
Material Type: Stainless Steel Wire
Weave Technique: Plain Weave
Wire Mesh Width: 1.5m
Certification: ISO9001, SGS
More Material Can Be Choose: SS304,3316,SS304L,SS316L,SS430 Etc
Wire Diameter: This Can Be Customized
Weaving Style: Customized
Opening Type: Square, Slotted Or Customized
Panel Size: Can Be Customized Such As 1.5x2m, 1.75x4.5m
Packaging: pallet or as require
Productivity: 1X20' container/2 week
Place of Origin: CHINA
Supply Ability: 1X20' container/10days

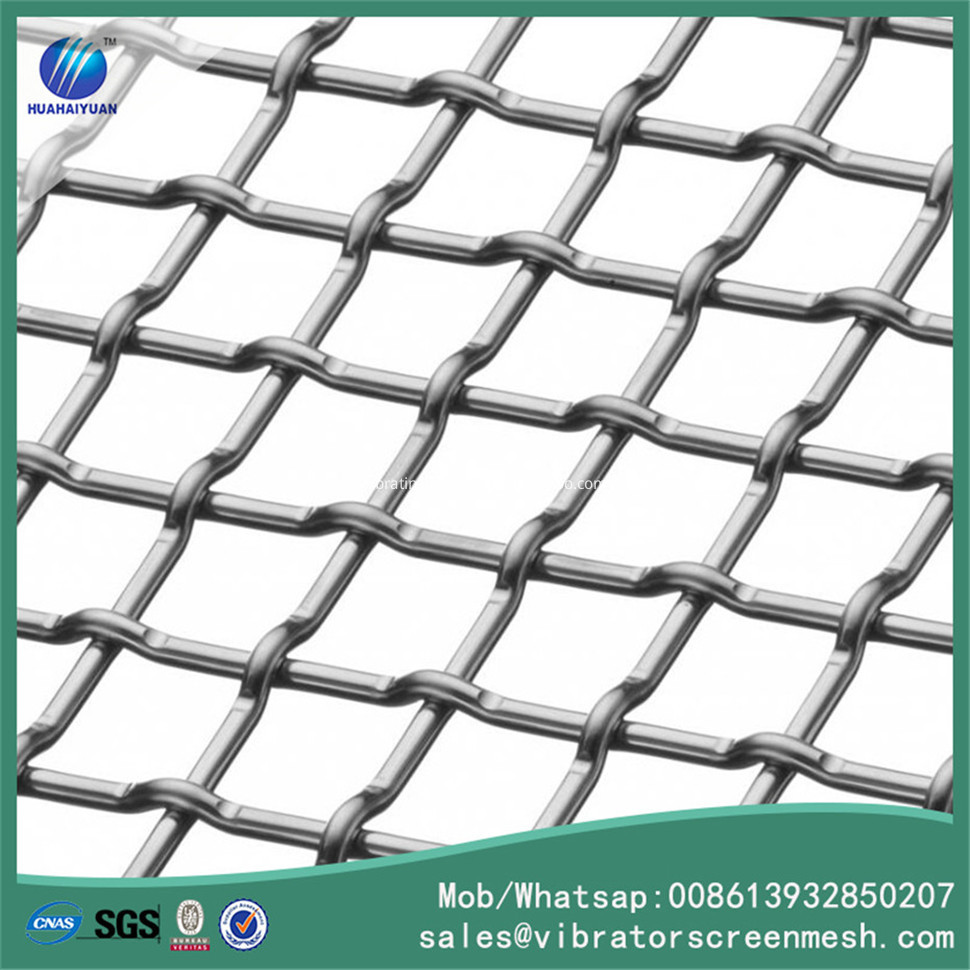

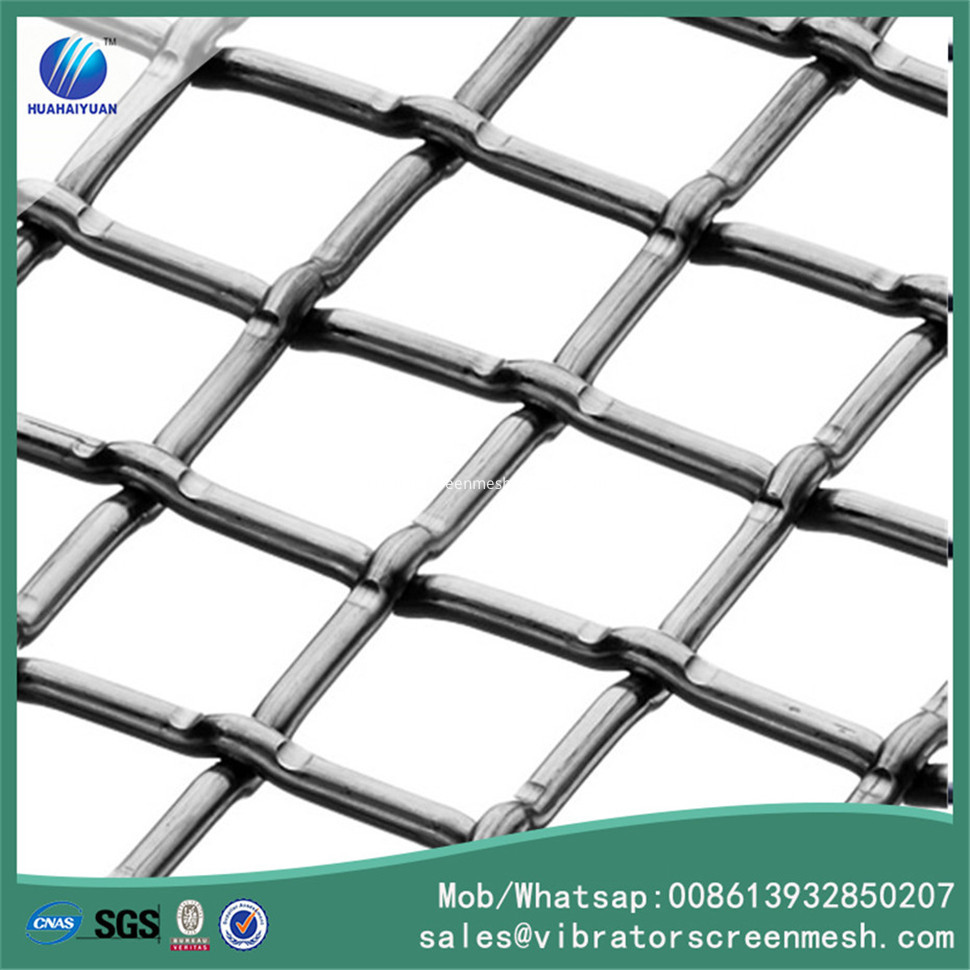

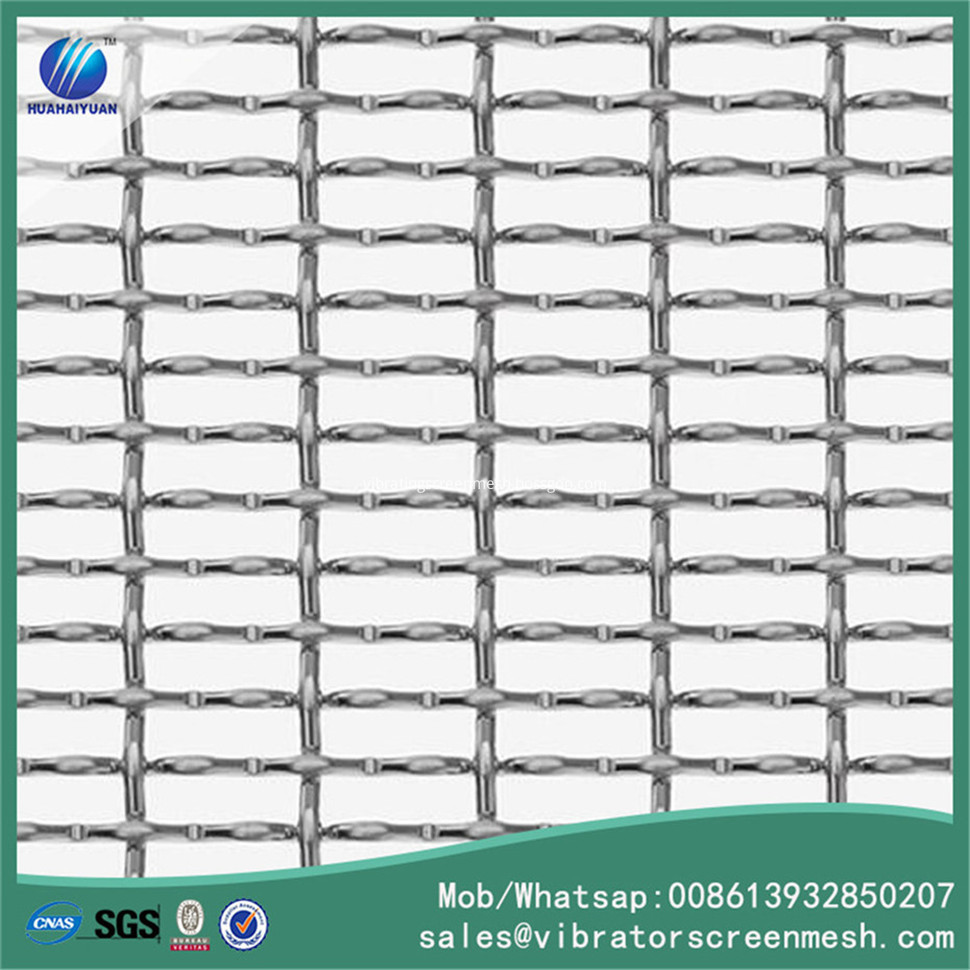

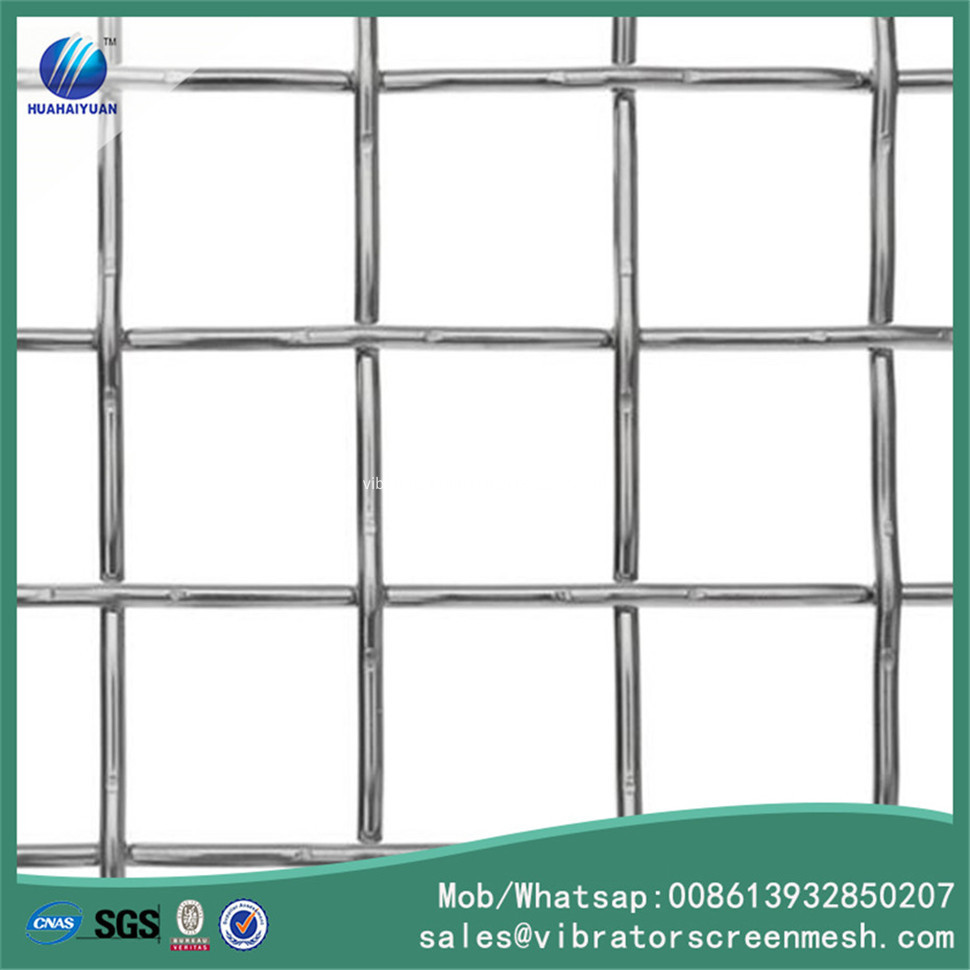

High Tensile Steel Lock Crimped Screen Mesh
High tensile steel lock crimped screen mesh, other name is lock crimped screen mesh, lock crimped wire mesh, and carbon steel crimped screen mesh. it is woven with pre-crimp techinique, the crimping of warp and shute wires is done in such as a manner to actully pull the wires together at their point of intersection, offering further assurance of no wire movement.
A refinement of the pre-crimp technique. The crimping of the warp and shute wires is done in such a manner to actually pull the wires together at their point of intersection, offering further assurance of no wire movement.
High Tensile Steel Lock Crimped Screen Mesh Choices:
material: high tensile steel wire, managanese steel, stainless steel.
aperture type: square, slotted, rectangle, w type, D type, diamond type or H type.
aperture size: 3mm, 5mm, 8mm, 10mm, 12mm, 14mm, 19mm, 20mm, 22mm, ...40mm...100mm etc, can be customized.
edge type: flat panel, hook type, plate hook, tension hook.
stainless steel vibration screen mesh used in the mine, quarry, vibrating can have a longer life when sift the wet or corrosive objects.
Below are the weaving types except Lock Crimped Screen Mesh
The Plain Wire Cloth Weave is the most common wire cloth used and it is one of the simplest wire cloths. The plain wire cloth is not crimped before weaving, and each warp wire passes over/under the wires running through the cloth at 90 degree angles.
Twill Square Weave
Each warp and shute of the Twill Square Weave Wire Cloth, is woven alternately over two and under two warp wires. This gives the appearance of parallel diagonal lines, allowing the twill square weave wire cloth to be used with heavier wires with a particular mesh count (that is possible with the plain weave wire cloth). This ability allows the application of this wire cloth for greater loads and finer filtration.
Plain Dutch Weave
The Plain Dutch Weave Wire Cloth or wire filter cloth is woven the same way as the plain weave wire cloth. The exception of the plain dutch wire cloth weave is that the warp wires are heavier than the shute wires.
Twilled Dutch Weave
Our Twilled Dutch Weave Wire Cloth or Wire Filter Cloth, in which each wire passes over two and under two. With the exception that the warp wires are heavier than the shute wires. This type of weave is capable of supporting greater loads than the Dutch Weave, with finer openings than the Twilled Weave. It is used in applications where filtering of heavy material is necessary.
Double Crimp Wire Cloth
Both warp and shute wires are crimped at the point of intersection to keep the wires in position. The double crimp wire cloth wires are not crimped before weaving. The corrugation or depression that is crimped into both the warp and shute wires is a result of having a plain weave pattern calls for each shute wire to pass over and under successive rows of warp wires and vice versa, like interlacing fingers.
Inter-Crimp Wire Cloth
Woven Wire cloth with an extra crimp in both warp and fill wire. Both the warp and shute wires are crimped with extra crimps or corrugations between the points of intersection. This technique is usually required when weaving large openings with fine wires.
Lock Crimp Wire Cloth
