| Payment Type: | L/C,T/T,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF |
| Min. Order: | 5 Piece/Pieces |
| Delivery Time: | 10 Days |
Basic Info
Model No.: HHY-Self cleaning mesh
Material: Steel Wire, High Carbon Steel, Manganese Steel,stainless Steel
Application: Construction Wire Mesh, Protecting Mesh, Screen, Filter, Barbecue Wire Mesh, Fence Mesh, Decorative Mesh, Window Curtain, Cages, Other
Hole Shape: Diamond, Square,rectangular,slot,diamond,W,H,D
Weave Technique: Plain Weave
Weave Method: Other
Feature: Eco Friendly
Wire Diameter: 2.0mm
Color: Other
Packaging: Pallet
Certification: ASTM, ISO9001
Colors: Any Colors We Can Paint
Additional Info
Packaging: pallet or as require
Productivity: 1X20' container/2 week
Brand: HHY
Transportation: Ocean,Land,Air
Place of Origin: CHINA
Supply Ability: 1X20' container/10days
Certificate: ISO9001:2008
HS Code: 73144900
Port: TIANJIN
Product Description
65Mn Anti-clogging Vibrating Screen Mesh
65Mn Anti-clogging Vibrating Screen Mesh is used for the highly effeciiency sift work, such as the asphalt, coal, construction waste etc. they are non blocking, average sift, fast and clean themselves.
anti-clogging screen mesh always be called self-cleaning screen mesh, anti-clogging mesh etc, they are one kind of vibrating screen mesh, this mesh can be woven with carbon steel wire, manganese steel wire and stainelss steel wire, according different country, different climate, they can have different material, specs and different edge type. still now, we have exported to Sri lanka, America, and the Middle East.

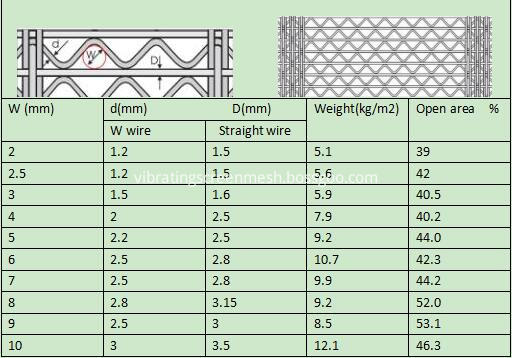

65Mn Anti-clogging Vibrating Screen Mesh specifications:
Material: stainless steel such as 304,316, 304L, 316L.
Panel sizes can be customized.
Opening type: diamond type and D type, W type.
Hook type can be customized
|
|
||||
|
W (mm) |
d(mm) D(mm) |
Weight(kg/m2) |
Open area % |
|
|
W wire |
Straight wire |
|||
|
2 |
1.2 |
1.5 |
5.1 |
39 |
|
2.5 |
1.2 |
1.5 |
5.6 |
42 |
|
3 |
1.5 |
1.6 |
5.9 |
40.5 |
|
4 |
2 |
2.5 |
7.9 |
40.2 |
|
5 |
2.2 |
2.5 |
9.2 |
44.0 |
|
6 |
2.5 |
2.8 |
10.7 |
42.3 |
|
7 |
2.5 |
2.8 |
9.9 |
44.2 |
|
8 |
2.8 |
3.15 |
9.2 |
52.0 |
|
9 |
2.5 |
3 |
8.5 |
53.1 |
|
10 |
3 |
3.5 |
12.1 |
46.3 |

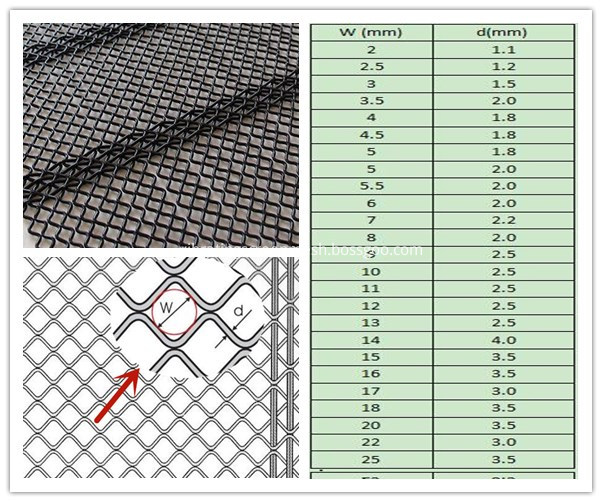

Specifications
· Material: High carbon steel wire, spring steel wire, manganese steel and stainless steel.
· Wire diameter: 1.6mm - 5mm.
· Opening size:
· 5/64" - 7/8" for W mesh.
· 3/64" - 1-1/2" for D mesh.
· 5/64" - 3/4" for H mesh.
· Surface treatment: Galvanized or painted.
· Edge: Hooked edge is available.
